Product Introduction

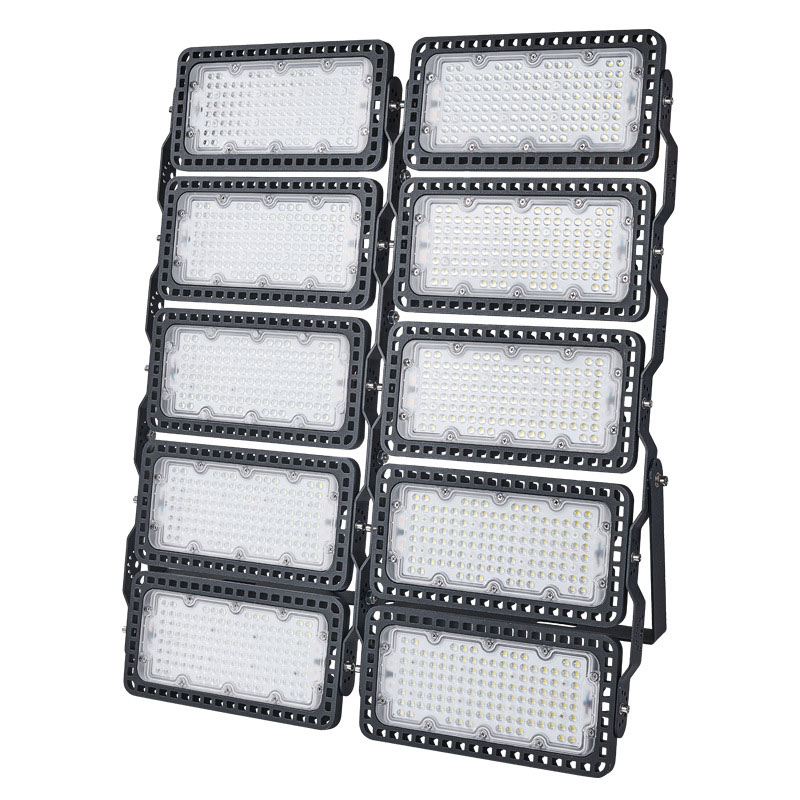

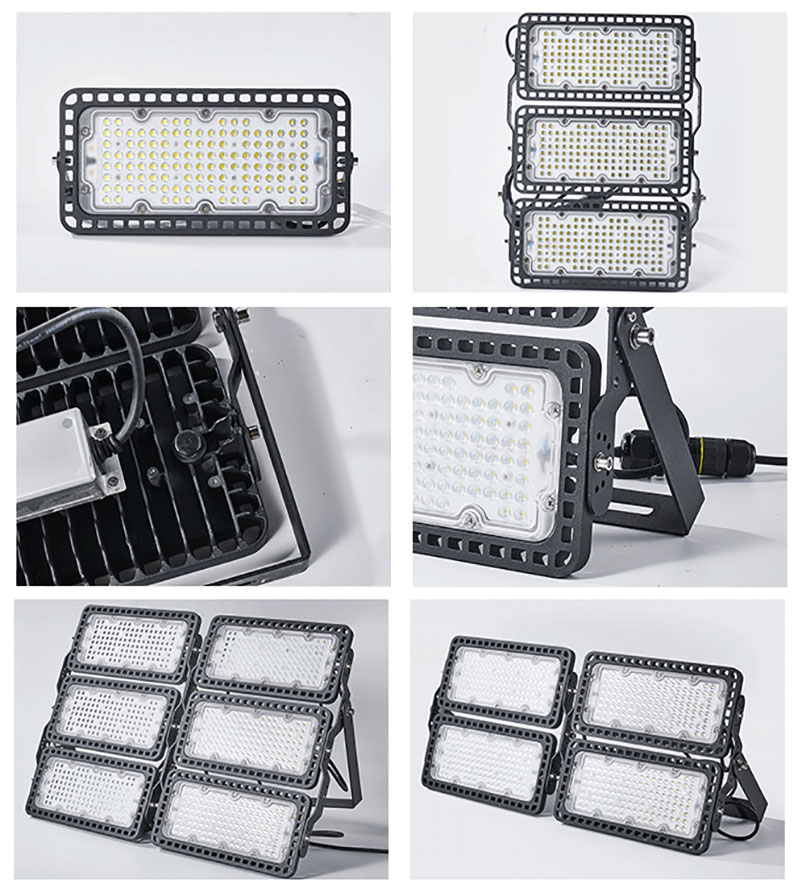

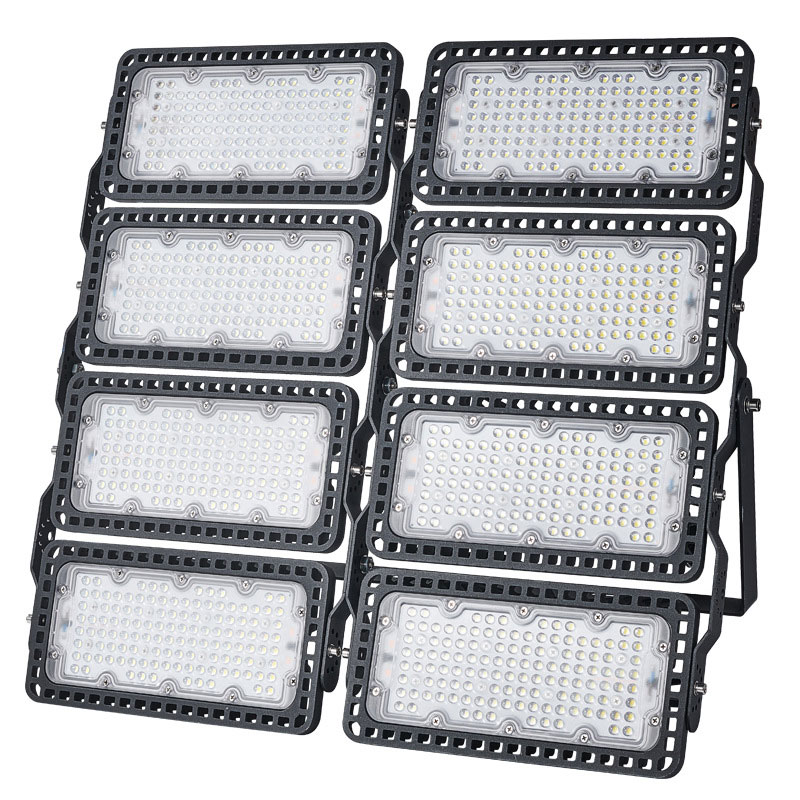

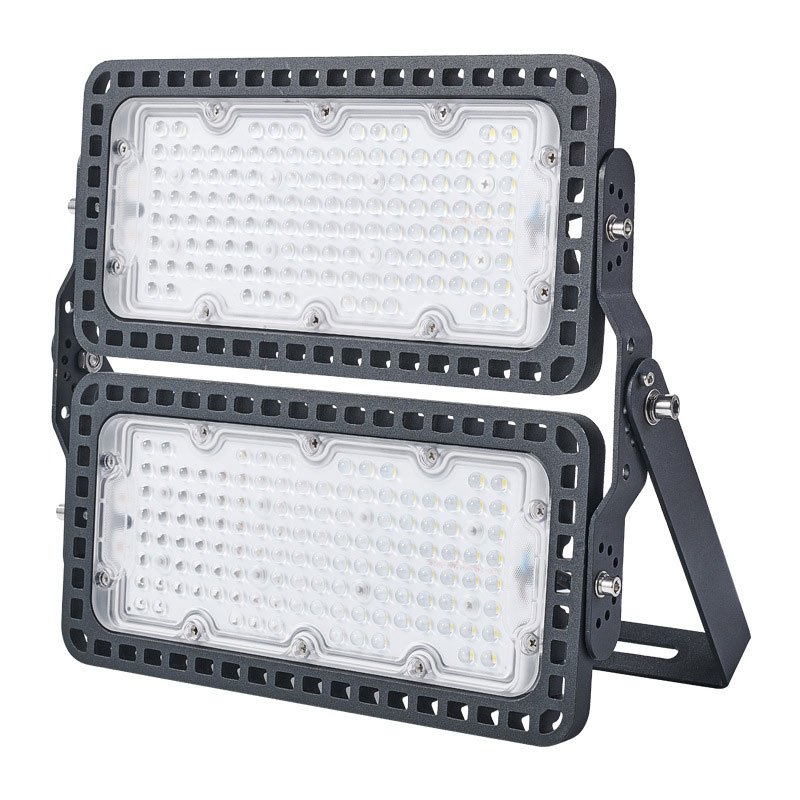

led floodlight adjustable module outdoor led projection lamp waterproof 1000W high pole lamp led stadium tunnel lamp
led floodlight adjustable module outdoor led projection lamp waterproof 1000W high pole lamp led stadium tunnel lamp
LED TUNNEL LIGHT
LED TUNNEL LIGHT
| Item NO. | Power | LED | Voltage | Size | Beam Angle | Luminous Flux | CRI | PF | Warranty |
|
WS-TL05-100 |
100w | SMD2835 120pcs | AC 85-265V | 300*170*70 | 60 | 110-150LM/W | 80 | 0.9 | 5 Years |
|
WS-TL05-200 |
200w |
SMD2835 240pcs |
AC 85-265V |
360*330*70 |
60 |
110-150LM/W |
80 | 0.9 |
5 Years |
|
WS-TL05-300 |
300w |
SMD2835 360pcs |
AC 85-265V |
360*485*70 |
60 |
110-150LM/W |
80 | 0.9 |
5 Years |
|
WS-TL05-400A |
400w | SMD2835 480pcs |
AC 85-265V |
360*670*70 |
60 |
110-150LM/W |
80 | 0.9 |
5 Years |
|
WS-TL05-400B |
400w |
SMD2835 480pcs |
AC 85-265V |
690*335*70 |
60 |
110-150LM/W |
80 | 0.9 |
5 Years |
|
WS-TL05-500 |
500w |
SMD2835 600pcs |
AC 85-265V |
360*830*70 |
60 |
110-150LM/W |
80 |
0.9 |
5 Years |
|
WS-TL05-600 |
600w |
SMD2835 720pcs |
AC 85-265V |
690*495*70 |
60 |
110-150LM/W |
80 |
0.9 |
5 Years |
|
WS-TL05-800 |
800w |
SMD2835 960pcs |
AC 85-265V |
690*680*70 |
60 |
110-150LM/W |
80 |
0.9 |
5 Years |
|
WS-TL05-1000 |
1000w |
SMD2835 1200pcs |
AC 85-265V |
690*840*70 |
60 |
110-150LM/W |
80 |
0.9 |
5 Years |
SPECIFICATIONS:
INPUT VOLTAGE:AC 85~265V
EFFICIENCY:150Lm/W
POWER FACTOR:>0.95
BEAM ANGLE:30°/60°/90°
WORKING TEMP:-30℃ ~ 50℃
CCT:3000K-6500K
INSTALL HEIGHT:≦25meters
CRI:Ra80
LED CHIPS:Chinese led brand SMD 3030& SMD2835
MATERIAL:Aluminum
DRIVER:CE driver&Sosen driver & Meanwell driver
IP GRADE:IP66
LIFESPAN:50,000hrs
IK GRADE:IK10
WARRANTY:5 years
CERT:CE, RoSH, IK10, IP66
FEATURES:
★ Adjustable bracket, get any install angles
★ Class A aluminum, get IK10 strong body
★ Lighting cap avoid lighting pollution
APPLICATONS:
Football field, gymnasium, airport, basketball court, baseball field, baseball field, tennis court, golf court, soccer stadium, parking lots, couryard, farm, cricket stadium etc.
