Product Introduction

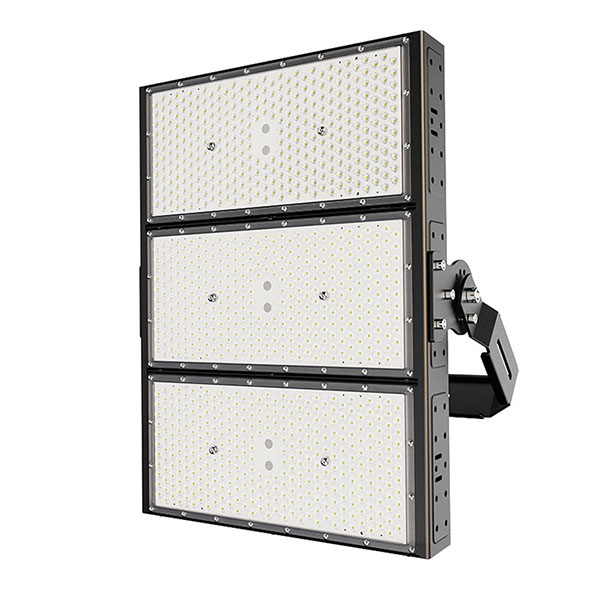

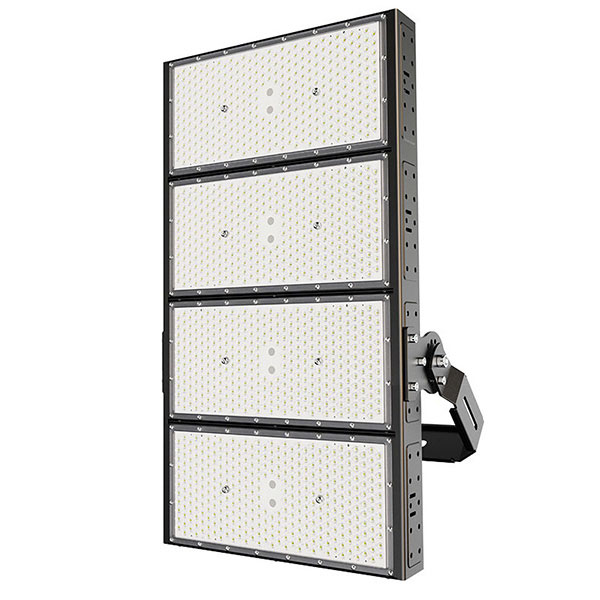

LED module projection light Outdoor stadium light billboard lighting projection light

Item NO.	Power	Size	Beam Angle	LED	Voltage	Luminous Flux	CRI	Warranty

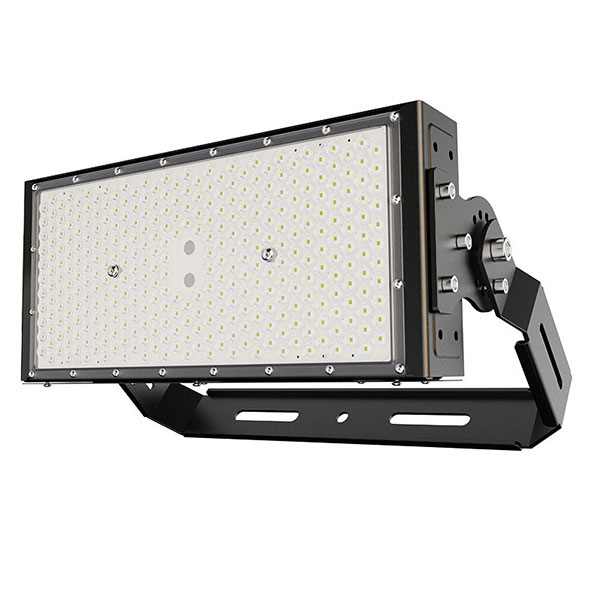

WS-STD05-250	250w	183*400*135	20/30/60/90	SMD3030	AC 85-265V	120-150lm/w	80	5 years

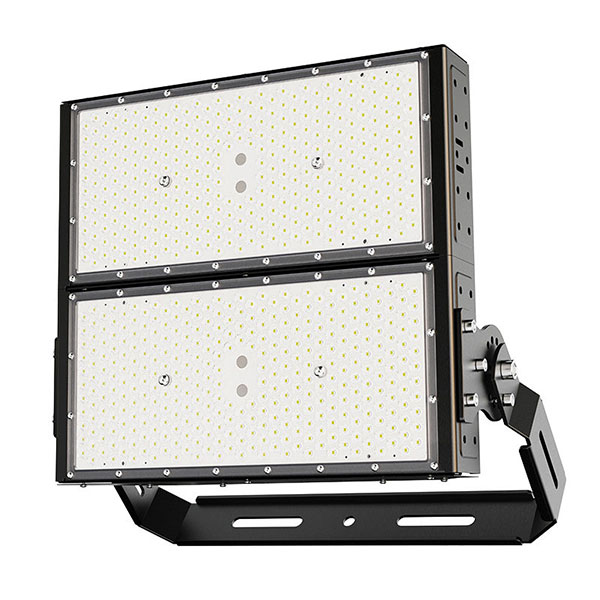

WS-STD05-500	500w	372*400*135	20/30/60/90	SMD3030	AC 85-265V	120-150lm/w	80	5 years
WS-STD05-750	750w	560*400*135	20/30/60/90	SMD3030	AC 85-265V	120-150lm/w	80	5 years
WS-STD05-1000A	1000w	746*400*135	20/30/60/90	SMD3030	AC 85-265V	120-150lm/w	80	5 years
WS-STD05-1000B	1000w	370*800*135	20/30/60/90	SMD3030	AC 85-265V	120-150lm/w	80	5 years

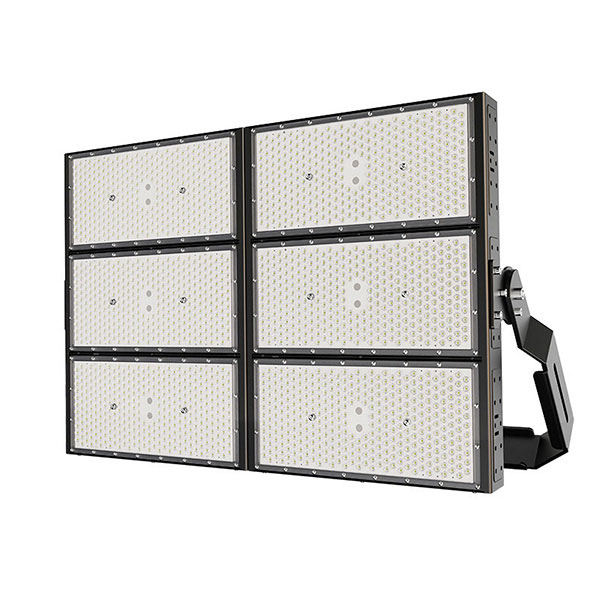

WS-STD05-1500	1500w	560*800*135	20/30/60/90	SMD3030	AC 85-265V	120-150lm/w	80	5 years

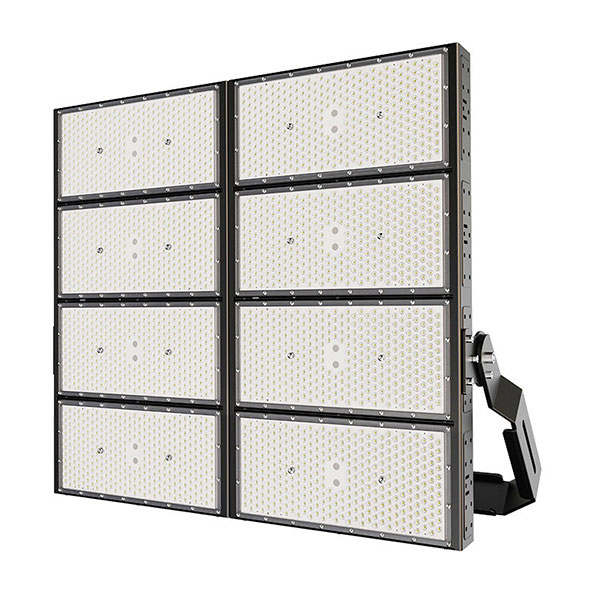

WS-STD05-2000	2000w	746*800*135	20/30/60/90	SMD3030	AC 85-265V	120-150lm/w	80	5 years

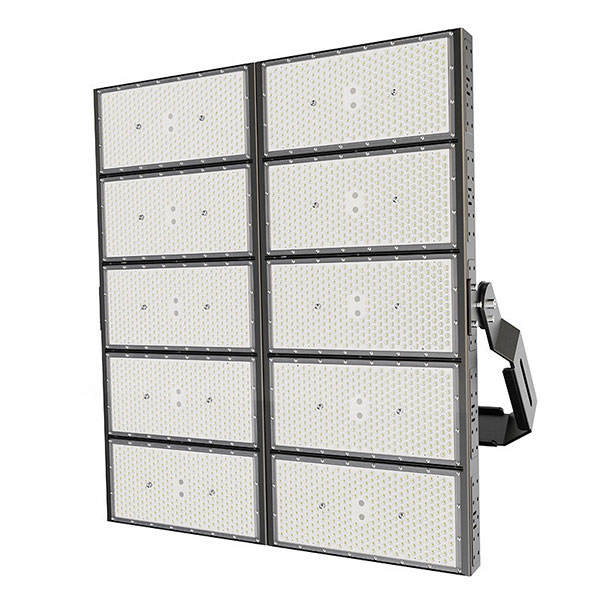

WS-STD05-2500	2500w	934*800*135	20/30/60/90	SMD3030	AC 85-265V	120-150lm/w	80	5 years

Specifications:

Voltage AC85-265V
LED Qty SMD3030
Power 250w each module(250w 500w 750w 1000w 1500w 2000w 2500w)
Body material : fins type Aluminum
Beam angle:20/30/60/90
LED colour RGB/red/blue/green/warm white/white
IP 65
Shot distance:more than 200m



Features:

Top Standard CREE or Lumileds LEDs
• Lamp Efficacy >150lm/W
• Multi-optional Optical Lenses for the optimized lighting performance
• 125,000 hours life
• > 80Ra

High Thickness Die Casting Aluminum Modular Heat Sinks
• High Thickness Modular Aluminum for Better Heat Dissipation
• Modular Design with Air Flow to Reduce Temperature
• Wide Power Range

Anti-glare Reflectors
• Help to improve for a comfortable environment
• Friendly for eyes to improve sports performance
• A more comfortable environment can Improve audience experience

Rotating Brackets
• High strength brackets
• Rotating design
• With target angle marks

Compact Design with IK10 Impact Resistant
• Compact and modern design
• 1-10 modules upto 2000 watts
• High transparent PC optical lenses for a high grade shock and impact resistance
