Product Introduction

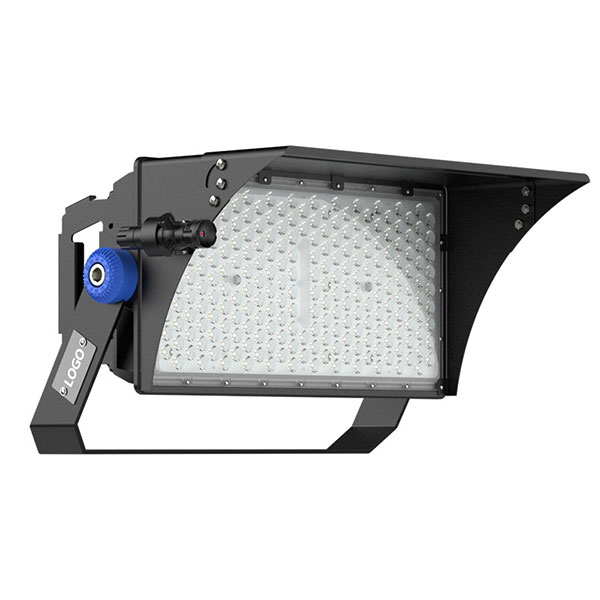

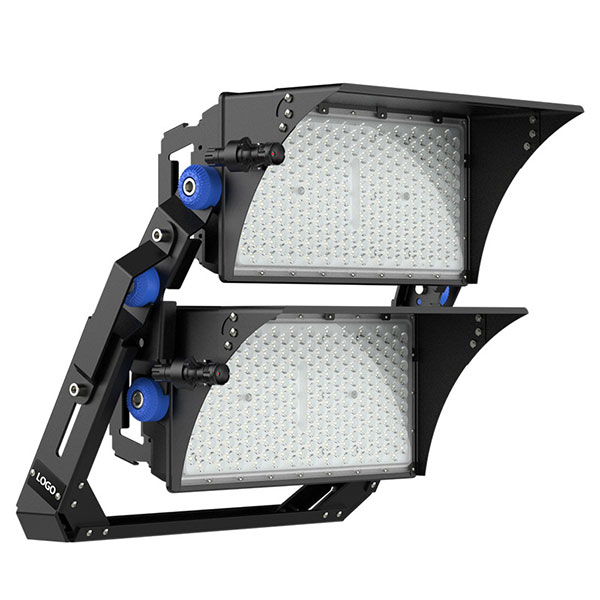

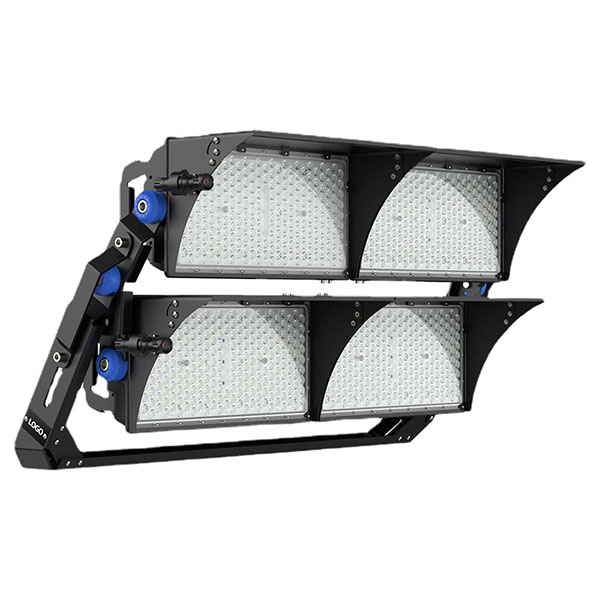

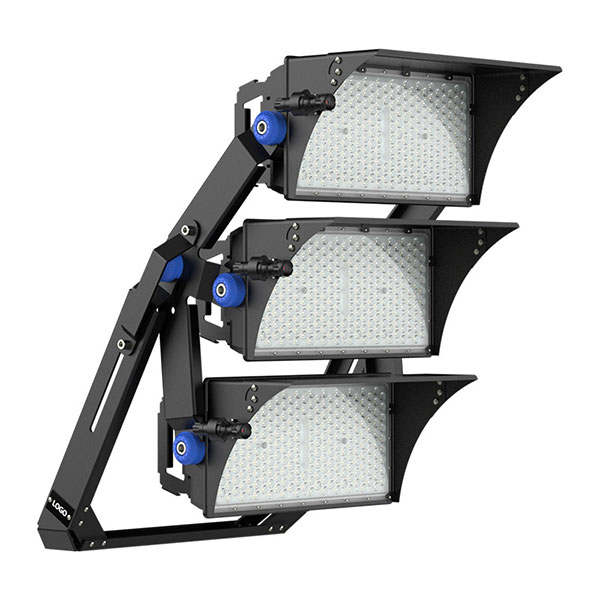

LED court light 2000W high power outdoor large badminton court high pole light outdoor basketball court lighting

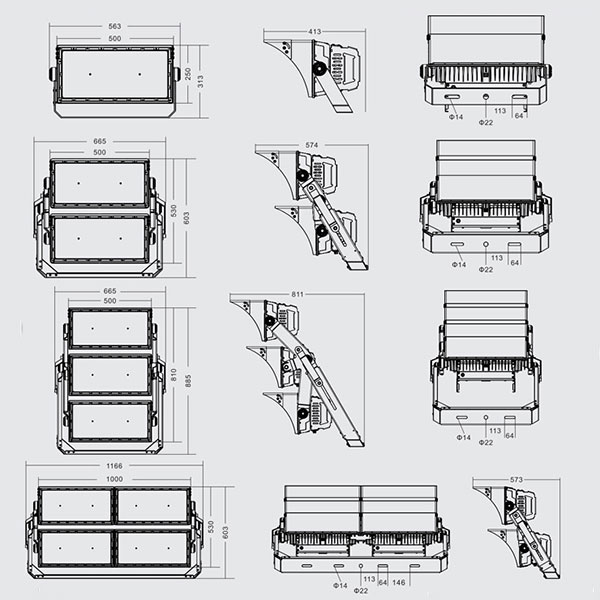

Item NO.	Power	Size	Beam Angle	LED	Voltage	Luminous Flux	CRI	Warranty
WS-STD08-500	500w	563*250*413	20/30/60/90	SMD3030	AC 85-265V	120-150lm/w	80	5 years
WS-STD08-1000	1000w	665*530*574	20/30/60/90	SMD3030	AC 85-265V	120-150lm/w	80	5 years
WS-STD08-1500	1500w	665*810*811	20/30/60/90	SMD3030	AC 85-265V	120-150lm/w	80	5 years
WS-STD08-2000	2000w	1166*530*573	20/30/60/90	SMD3030	AC 85-265V	120-150lm/w	80	5 years

Specifications:

Voltage AC85-265V
LED Qty SMD3030
Power 500w 1000w 1500w 2000w
Body material : Aluminum
Beam angle:20/30/60/90
LED colour RGB/red/blue/green/warm white/white
IP 65
Shot distance:more than 200m



Features:

Top Standard CREE or Lumileds LEDs
• Lamp Efficacy >150lm/W
• Multi-optional Optical Lenses for the optimized lighting performance
• 125,000 hours life
• > 80Ra

High Thickness Die Casting Aluminum Modular Heat Sinks
• High Thickness Modular Aluminum for Better Heat Dissipation
• Modular Design with Air Flow to Reduce Temperature
• Wide Power Range

Anti-glare Reflectors
• Help to improve for a comfortable environment
• Friendly for eyes to improve sports performance
• A more comfortable environment can Improve audience experience

Rotating Brackets
• High strength brackets
• Rotating design
• With target angle marks

Compact Design with IK10 Impact Resistant
• Compact and modern design
• 1-10 modules upto 2000 watts
• High transparent PC optical lenses for a high grade shock and impact resistance
