Product Introduction

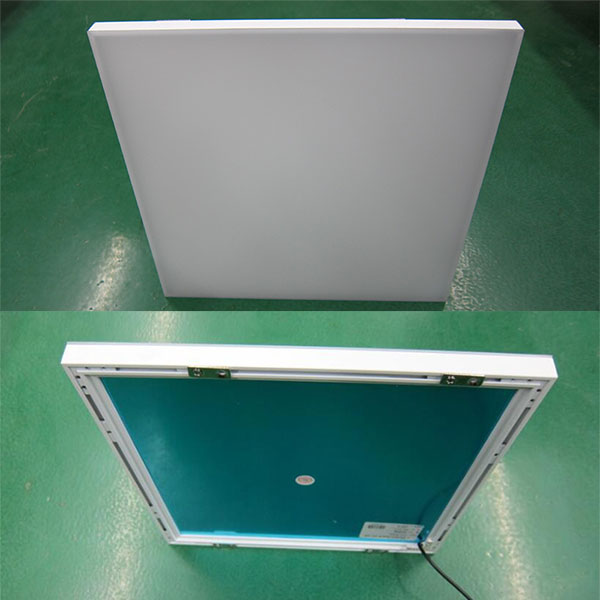

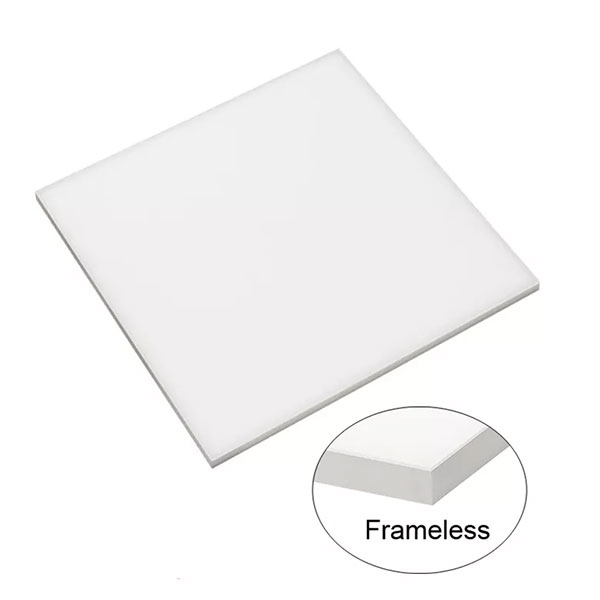

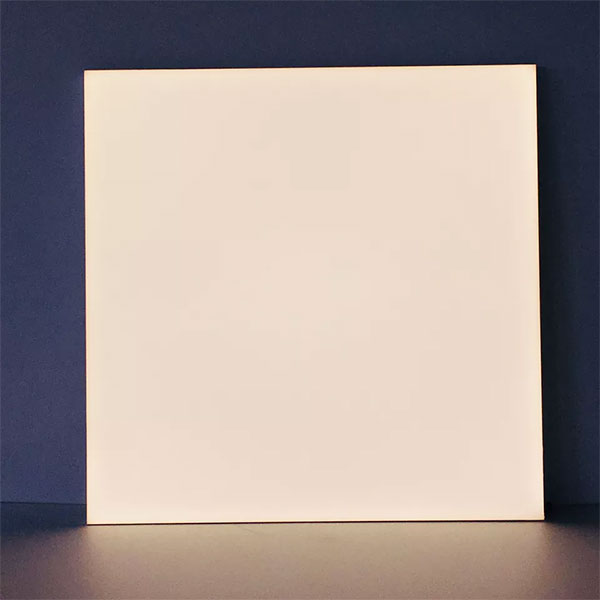

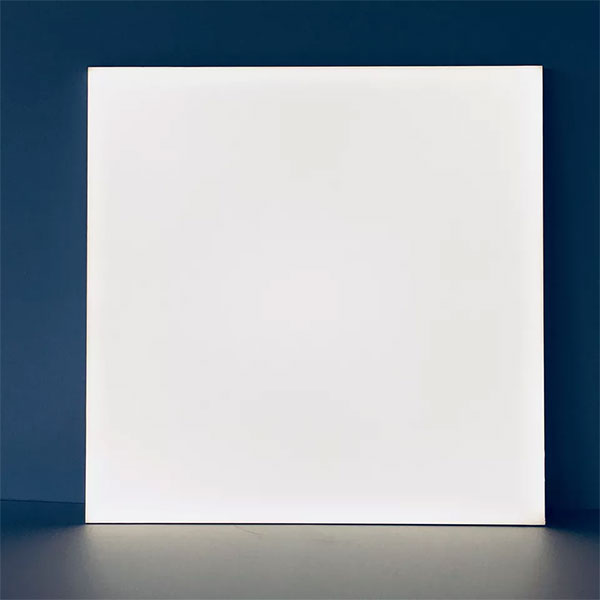

Side lighting frameless LED panel Light china Frameless LED Flat Panel Down Light edge lit led panel
| Item NO. | Power | Size | LED | Lumens | PF | CRI | Voltage | Life Span | Warranty |
|
WS-PL3030E-18 |
18w |
300*300*10mm |
SMD2835 |
110-180lm/w |
0.9 |
80 |
AC100-240V |
50000hours |
3 years |
|
WS-PL30120E-48 |
48w |
300*1200*10mm |
SMD2835 |
110-180lm/w |
0.9 |
80 |
AC100-240V |
50000hours |
3 years |
|
WS-PL6060E-36 |
36w |
600*600*10mm |
SMD2835 |
110-180lm/w |
0.9 |
80 |
AC100-240V |
50000hours |
3 years |
|
WS-PL6060E-48 |
48w |
600*600*10mm |
SMD2835 |
110-180lm/w |
0.9 |
80 |
AC100-240V |
50000hours |
3 years |
|
WS-PL60120E-72 |
72w | 600*1200*10mm |
SMD2835 |
110-180lm/w |
0.9 |
80 |
AC100-240V |
50000hours |
3 years |
1) Rigid AL6063 Frame with 3-dot seamless welding;
2) RAL9016 standard color, anti-corrosion;
3) 2oz copper PCB;
4) Branded Chipset, LM80 approved;
5) PMMA LGP with opal diffuser or prismatic diffuser;
6) Kinds of standard or customized accessories to meet different installation requirement.
7) 3 years warranty as standard.
Other Custom Option:
A. Isolated driver and Non-isolated driver
B.Voltage:AC100-240V/ AC 90-130V/AC180-240V(AC 100-277V,AC 120-347V)
C.Custom dimmable available(triac dimmable,0-10v dimmable),CCT&Power selectable version
D.Human sensor led panel and voice sensor panel,emergency led panel available
E.Luminous Flux:100-110lm/w 120-130lm/w 140-150lm/w 160-170lm/w 170-180lm/w(the brightnest)
