Product Introduction

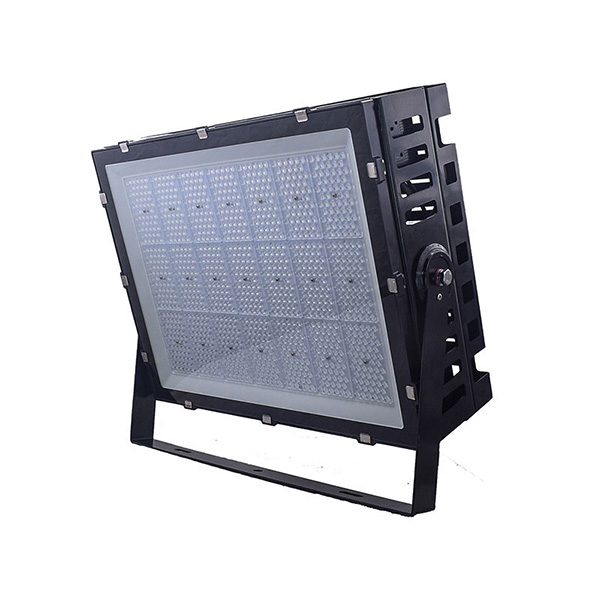

400w 600w 1000w LED Stadium Light Sports Lighting Projection Light High Pole Light Projection Light Floodlight

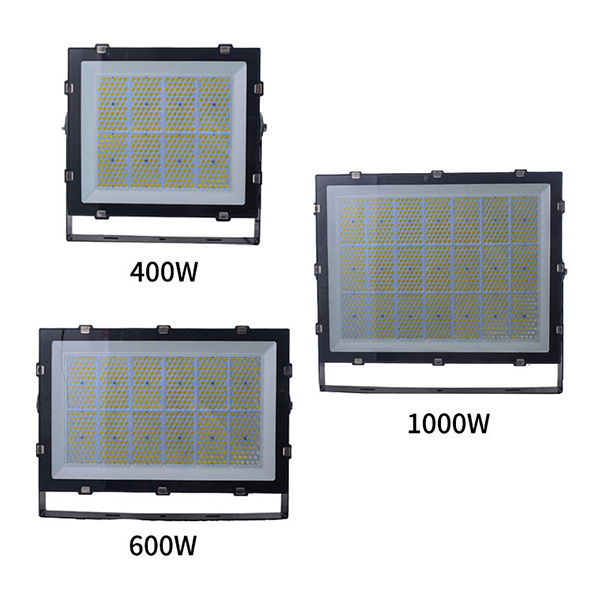

Item NO.	Power	Size	Beam Angle	LED	Voltage	Luminous Flux	CRI	Warranty
WS-STD04-400	400w	395*375*165	10/20/30/60/90	SMD3030 480pcs	AC 85-265V	120-150lm/w	80	5 years
WS-STD04-600	600w	515*375*165	10/20/30/60/90	SMD3030 720pcs	AC 85-265V	120-150lm/w	80	5 years
WS-STD04-1000	1000w	575*475*165	10/20/30/60/90	SMD3030 1260pcs	AC 85-265V	120-150lm/w	80	5 years

Specifications:

Voltage AC85-265V
LED Qty SMD3030 520pcs each module,each module 500w
Power 400w 600w 1000w
Body material : fins type Aluminum
Beam angle:20/30/60/90
LED colour RGB/red/blue/green/warm white/white
IP 65
Shot distance:more than 200m



Features:

Top Standard CREE or Lumileds LEDs
• Lamp Efficacy >150lm/W
• Multi-optional Optical Lenses for the optimized lighting performance
• 125,000 hours life
• > 80Ra

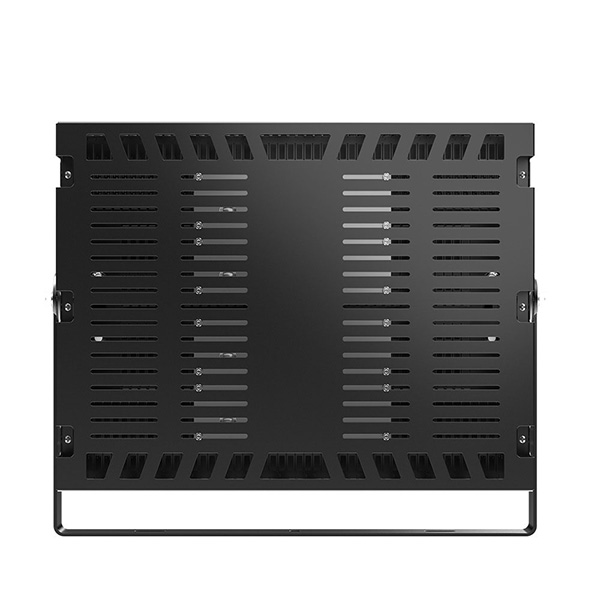

High Thickness Die Casting Aluminum Modular Heat Sinks
• High Thickness Modular Aluminum for Better Heat Dissipation
• Modular Design with Air Flow to Reduce Temperature
• Wide Power Range

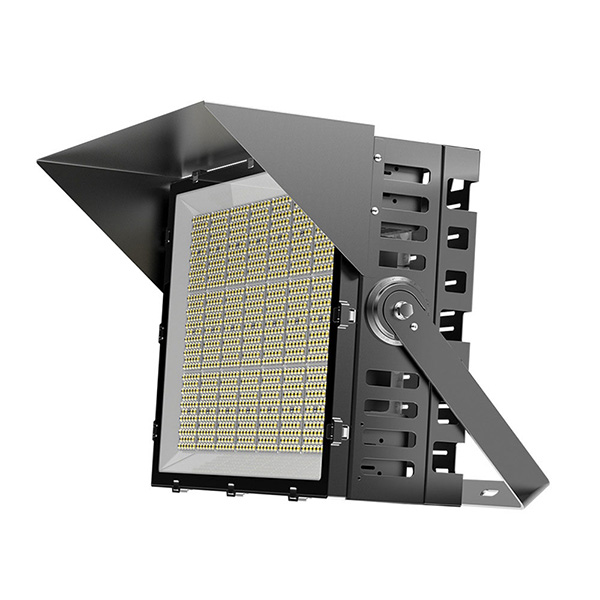

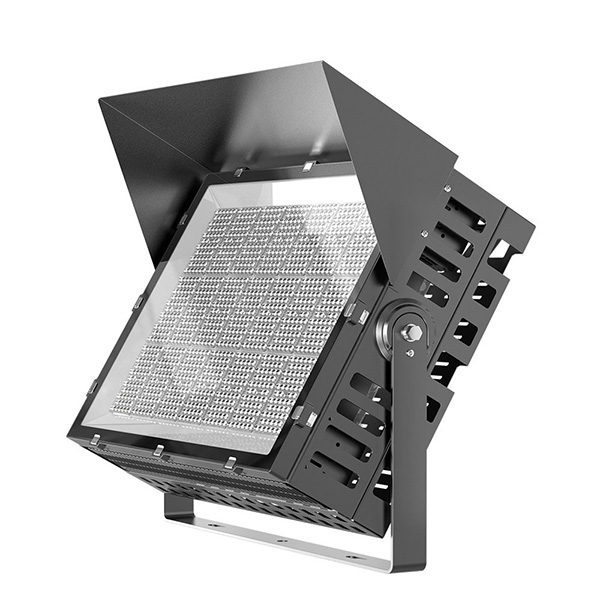

Anti-glare Reflectors
• Help to improve for a comfortable environment
• Friendly for eyes to improve sports performance
• A more comfortable environment can Improve audience experience

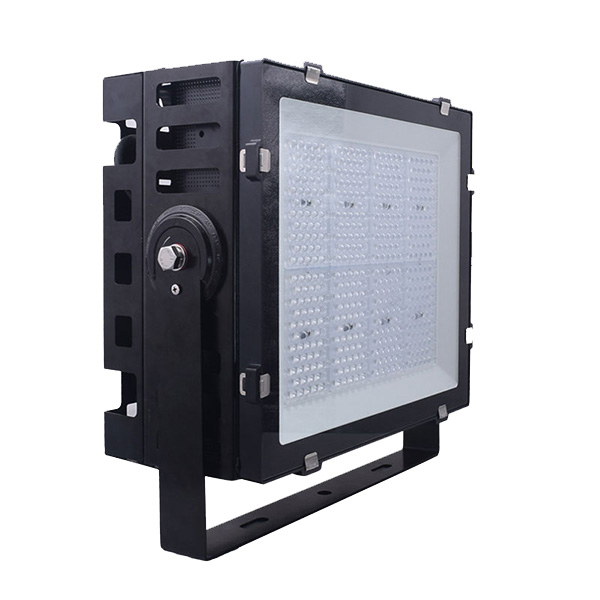

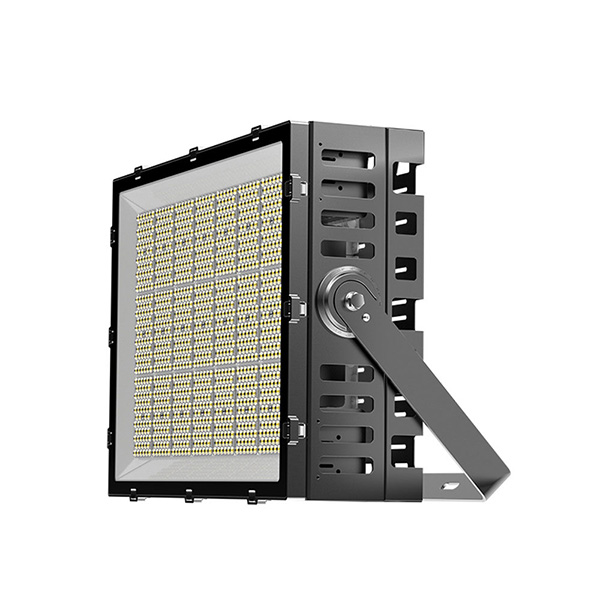

Rotating Brackets
• High strength brackets
• Rotating design
• With target angle marks

Compact Design with IK10 Impact Resistant
• Compact and modern design
• 1-4 modules upto 2000 watts
• High transparent PC optical lenses for a high grade shock and impact resistance
